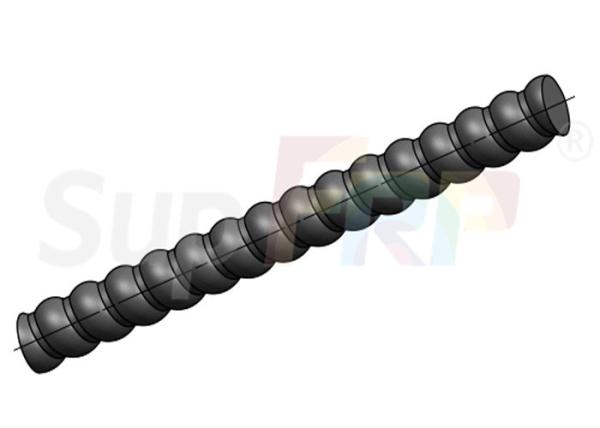

Cross Sectional Area 1020mm2 BFRP / CFRP / GFRP 36mm Fiberglass Rebar

  • 1
  • 2

Brand Name : SupFRP

Model Number : ReB-36

Certification : ISO, SGS, NATA

Place of Origin : Jiangsu, China

MOQ : 3 meters

Price : 1 - 30 USD

Payment Terms : L/C, T/T

Supply Ability : 50,000 meters per month

Delivery Time : 1 to 6 weeks

Packaging Details : Packed in bundle with package paper.

Name : SupFRP ReB-36 Fiberglass Rebar

O.D. (mm) : 41

Ultimate Strain : 2.0%

Cross Sectional Area (mm2) : 1020

Tensile Load (kN) : 867

Tensile E-Modulus (GPa) : 50

Unit Weight (Kg/m) : 2.65

Length (m) : Any length and shape by customized

Contact Now

Over 100 Years Service Life 36mm Threaded BFRP/CFRP/GFRP Rebar In Exposed Structures

Features

GFRP Reinforcement Rebar is developed as a good alternative products for concrete internal reinforcement.

The SupFRP® GFRP Reinforcement Rebar is made of high quality corrosion resistant resin and fiber glass materials. Itcan be produced into various shapes in factory.The GFRP Reinforcement Rebar can be used both for permanent applications and temporary application.

Advantages

1. High corrosion resistance for permanent application

2. Excellent bonding with concrete

3. High thermal isolation

4. Non-conductive

5. Non-magnetic

6. Easy cutting-cost-effective

7. Wide range of shapes

Applications

1. Avoidance of thermal bridges

2. Infrastructural buildings

3. Bridge decks

4. Sea walls

5. Port aprons

6. Soft-eye excavation

7. Foundations

8. Industrial plants

Technical data

GFRP Reinforcement Rebar ReB-20 ReB-22 ReB-25 ReB-28 ReB-30 ReB-32 ReB-36 ReB-40
Outside Diameter (mm)*1 23 25 28 32 34 36 41 45
Guaranteed tensile load (kN) 314 380 491 555 636 720 867 1006

Nominal Cross sectional

area (mm2)*2

 314 380 491 616 706 800 1020 1257
Tensile Strength (Mpa) 1000 1000 1000 900 900 900 850 800
Ultimate Strain 2.00%
Tensile E-Modulus (GPa) 50
Weight (kg/m) 0.79 0.97 1.20 1.56 1.88 2.00 2.65 3.10

*1 Including Waved Thread Structure

*2 Characteristic Stress Value in core

Application

Cross Sectional Area 1020mm2 BFRP / CFRP / GFRP 36mm Fiberglass Rebar

Cross Sectional Area 1020mm2 BFRP / CFRP / GFRP 36mm Fiberglass RebarCross Sectional Area 1020mm2 BFRP / CFRP / GFRP 36mm Fiberglass Rebar
